SMALL HIPPO
Light and handy, the basic moles
The best choice of drainage for common air condition.
Recommended Installation Position
Study
Living Room
Store
Office

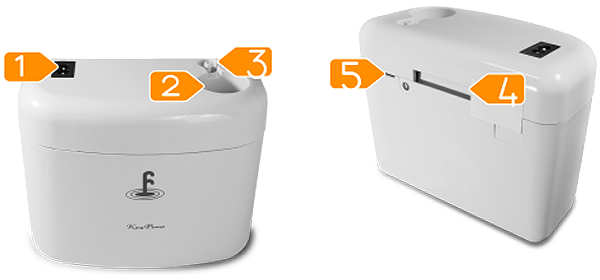

Product Detail
1. AC Outlet
2. Cooling Condensed Water Intake
3. Outlet Pipe Connector
4. Backplane Slot
5. Overfall Gap
Feature

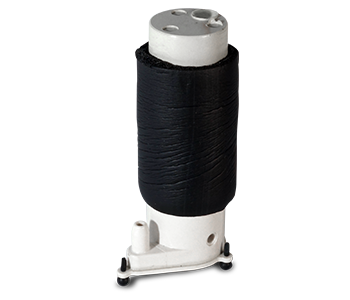

Effective Mini-Motor
Developed specifically High-head motor for the Small Hippo series to achieve very high lift with 3M.

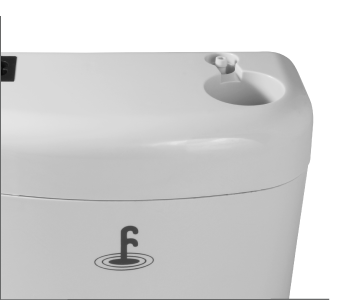

Flat Exterior Design
Embedded outlet design to avoid breaking when installed or water streamed onto the body caused failure.

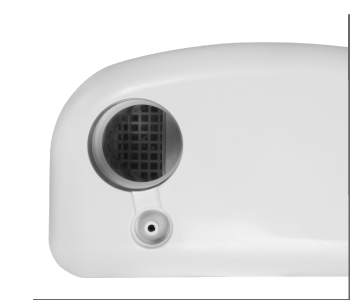

Check Valve Design
Prevents cooling condensed water setback from inside of drainage pipe, no limit to even high or low water discharging.

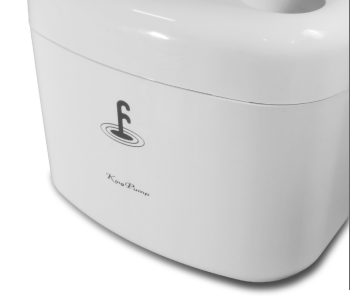

Insulated Housing Design
No dew or water coherence on case surface.

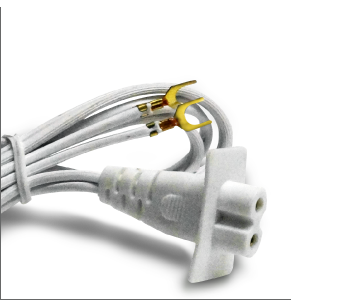

Independent Power Switch Design
Easy installation and maintenance.
Specifications
- Applicable to all brand of air conditioners below 25,000 B.T.U.
- Power Supply / Frequency : AC 220V~240V 50 / 60Hz
- Max. Discharge Head : 3M
- Power Consumption (Max.) : 18W
- Ambient Temperature Range : 0°~50°c Max
- Dimensions / Weight : (L) 18 X (W) 12 X (H) 14 cm / 0.6 kg
- Material : ABS
- Discharge Pipe Size : ø 4.3 X ø 6.5 mm (5/32”)
Water Hea (M) / Drainage (L / min)
