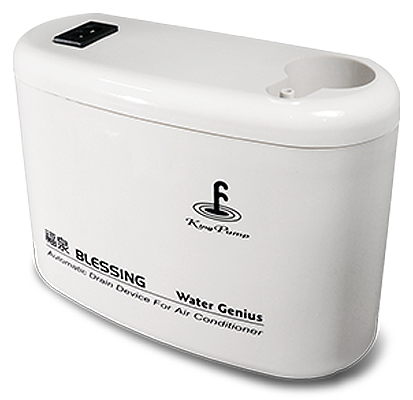

WATER GENIUS
Classical and thin, powerful discharge floor-standing air-conditioner
4M Wate Head, easy discharge. Extremely thin and easy match.

Recommended Installation Position

Basement

Living Room

Store

Office

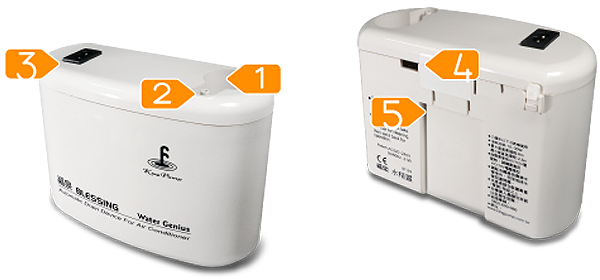

Product Detail

1. Cooling Condensed Water Intake
2. Outlet Pipe Connector
3. AC Outlet
4. Overfall Gap
5. Backpalne Slot
Feature

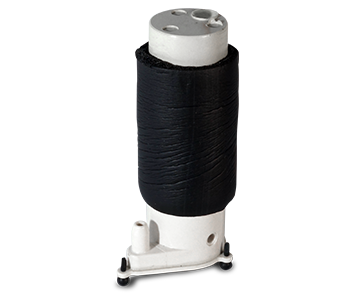

Effective Mini-Motor
Developed specifically High-head motor for the Water Genius series to achieve very high lift with 4M.

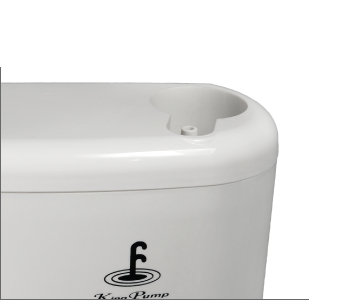

Flat Exterior Design
Embedded outlet design to avoid breaking when installed or water streamed onto the body caused failure.

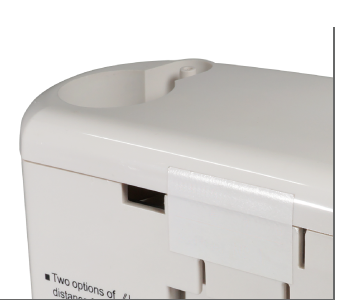

Check Valve Design
Prevents cooling condensed water setback from inside of drainage pipe, no limit to even high or low water discharging.

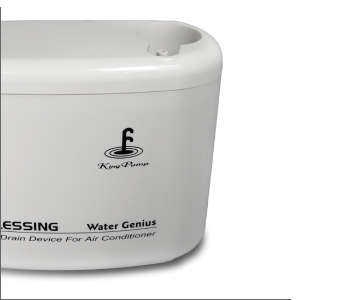

Insulated Housing Design
No dew or water coherence on case surface.

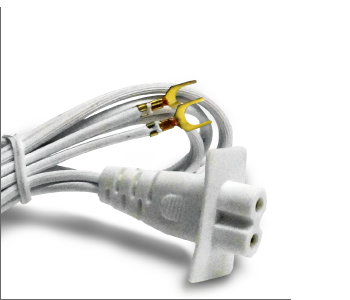

Independent Power Switch Design
Easy installation and maintenance.
Specifications
- Applicable to all brand of air conditioners below 36,000 B.T.U.
- Power Supply / Frequency : AC 220V~240V 50 / 60Hz
- Max. Discharge Head : 6M
- Power Consumption (Max.) : 30W
- Ambient Temperature Range : 0°~50°c Max
- Dimensions / Weight : (L) 18 X (W) 8 X (H) 14 cm / 0.8 kg
- Material : ABS
- Discharge Pipe Size : ø 4.3 X ø 6.5 mm (5/32”)

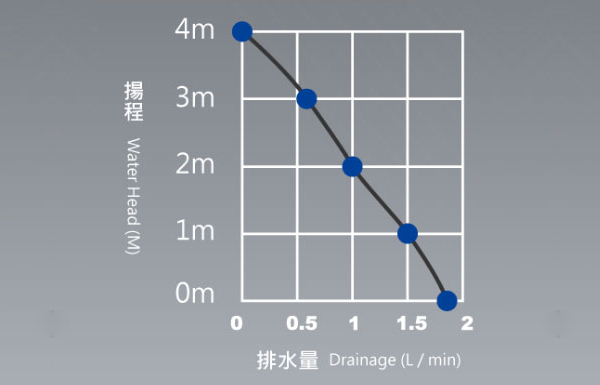

Water Hea (M) / Drainage (L / min)
